DAK_logo  JSC ”Drogobych truck crane plant"
About DAK KTA-18 KTA-25 KTA-28 KTA-32 KTA-40 Praktik Hydraulic Cylinders
Praktik KM-9.8"PRAKTIK" KM-9.8

 Crane manipulators
 may be equipped with add. equipment
 as the grasps, hooks and others
 on mobile chassis:
 KrAZ, KamAZ, MAZ, URAL		Load-lifting with gasp

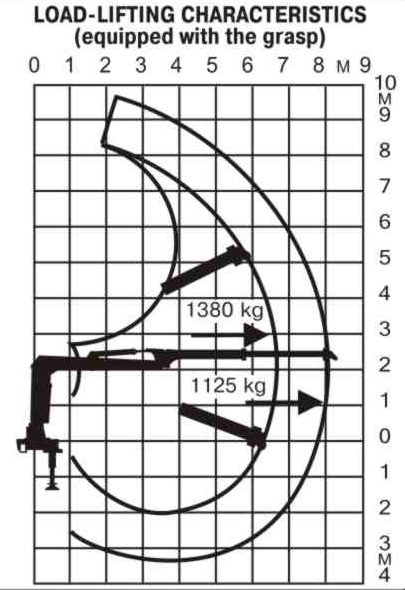

Technical Data:
MAX. LOAD MOMENT, ts.m9

LOAD-LIFTING CAPACITY, BRUTTO:
MAX, t

3
ON MAX. OUTREACH, t

1

OUTREACH (from the axis of rolling):
MAX, m

8
MIN, m

1,4

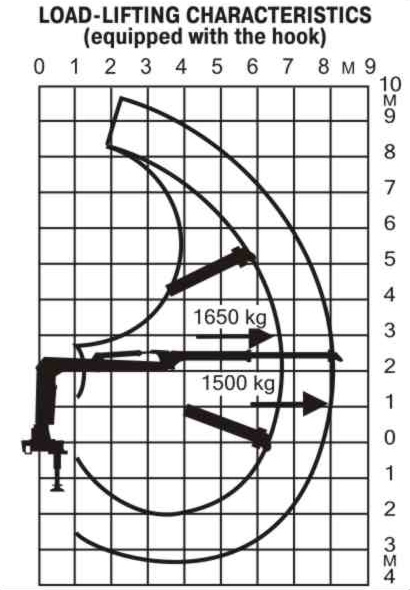

 Load-lifting with hook
MAX. LIFTING HIGHT, m

10
MAX. DROPING DEPTH, m

2,2
TURN ANGLE, degrees

400
LIFTING-DROPING SPEED, m/min

30
TURN QUANTITY, per minute

2
LENGTH IN TRANSPORTING POSITION, m

10
WIDTH IN TRANSPORTING POSITION, m

2,65
HEIGHT IN TRANSPORTING POSITION, m

4
