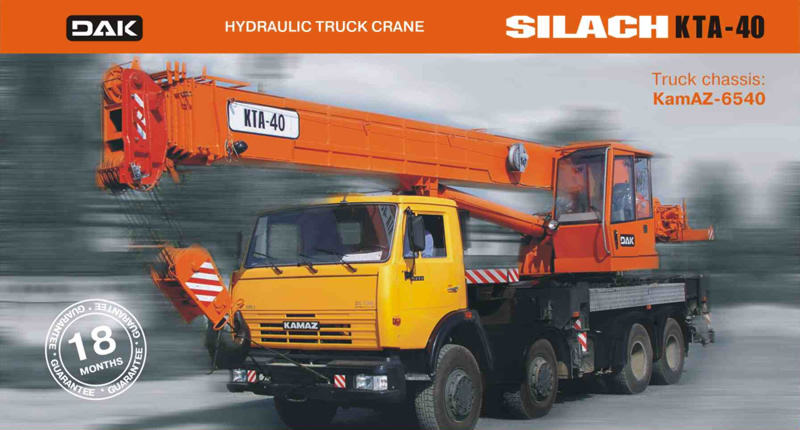

KTA-40 of load-lifting capacity 40t
with five boom sections
hook lifting height 36,0/45,0 m
outreach 2,4-22,0m
on mobile chassis:
KamAZ (6540)
MAZ, KrAZ
|
|
KTA-40 |
|
Load - lifting capacity, max, t |
40,0 |
|
Outreach (max. load-lifting capacity), m |
3,0 |
|
Outreach, m |
2,40-22,00 |
|
Max. loading moment, kNm |
1200 (120) |
|
Hook lifting height /with extension, m |
36,0/45,0 |
|
Max. depth of hook dropping whith 9t, m |
19,0 |
|
Length of boom /with extension, m |
9,8-36,0/45,0 |
|
Quantity of boom sections |
5 |
|
Slewing angle of crane / working area, ° |
360/240 |
|
|
|
|
Lifting-dropping speed: |
- max . load , m/min |
5,0 |
|
- load to 4 t, m/min |
12,0 |
|
Lowering speed, m/min |
0,4 |
|
Turn quantity per minute |
1,2 |
|
Duration of outreach changing , s |
45,0 |
|
Telescope moving speed, m/min |
15,0 |
|
|
|
|
Crane overall dimensions: |
- length, m |
12,0 |
|
- width, m |
2,65 |
|
- height, m |
4,0 |
|
Crane geometrical parameters : |
|
|
- outriggers base, m |
4,8 |
|
- distance between outriggers, m |
5,8 |
|
- turning radius in moving position, m |
12,0 |
|
Mass of crane installation, kg |
28.200 |
|
|
|
|
